slim led backlit lattice for light boxes

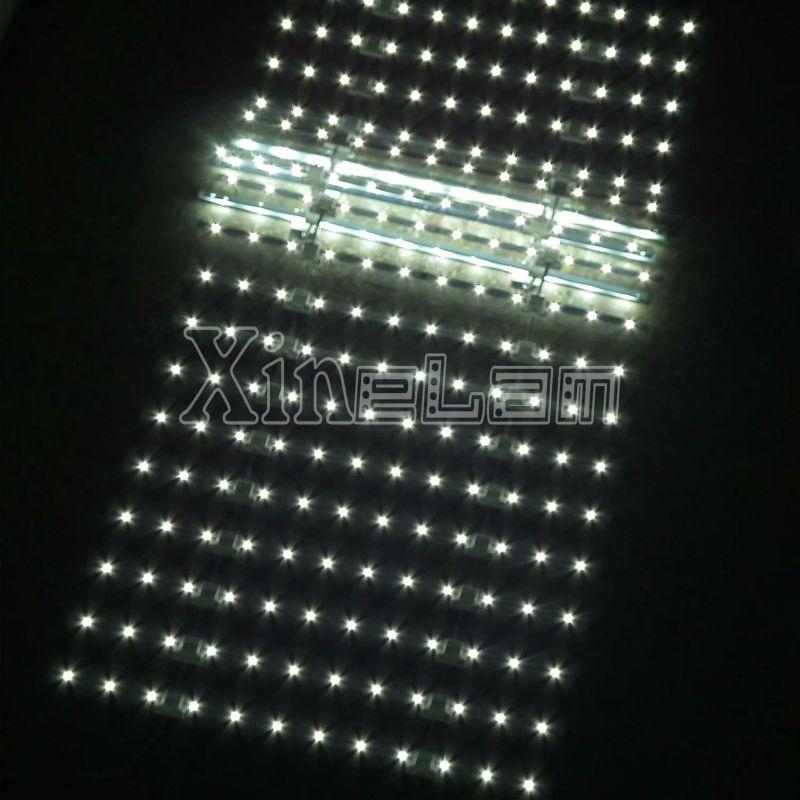

Description: BKT50S-50 LED lattice backlight (LED curtain, LED bamboo slips); LATTICE LED Matrix Lighting System is the most versatile and practical illumination solution for indoor and outdoor sign cabinets and large area illumination.
Innovative design of LATTICE system comes in lightweight easy-to-install rolls, which allows for easy population of perfectly spaced LEDs in minutes for uniform backlit lighting.
|
LED Chip |
Epistar chip 2835 SMD |
|
Input voltage |
DC12V Constant Voltage |
|
Each PCB dimension |
600x10x2.8mm |
|
PCB Color |
White |
|
High CRI |
Ra > 85 |
|
High Efficiency |
100Lm/w |
|
High Brightness |
9000Lm/m2, 836Lm/sqft |
|
Waterproof Rating |
Non-waterproof or Conformal Coated ip66 |
|
Option Color |
WW 2700-3200K, NW 4200-4700K,CW 6000-6500K |
|
Power |
2.7W each PCS |
|
LED QTY |
12pcs each rigid bar |
|
LED Lamp design |
Single-side |
|
LED to LED distance |
50mm / 1.97” |
|
Bar to Bar distance |
50mm / 1.97” |
|
LED to face distance |
72mm / 2.83” |
|
Maximum Series Connection |
48bars 2.4M / 7.87ft |
|
Cuttable LED |
Each 3LEDs ( 150mm ) |
|
Available dimension |
300x10x2.8mm & 150x10x2.8mm |
|
Application Environment |
Dry & Damp Locations |
|
Operating Temperature |
-30 ~ 70°C |
|
Certifications |
CE,RoHS,FCC |

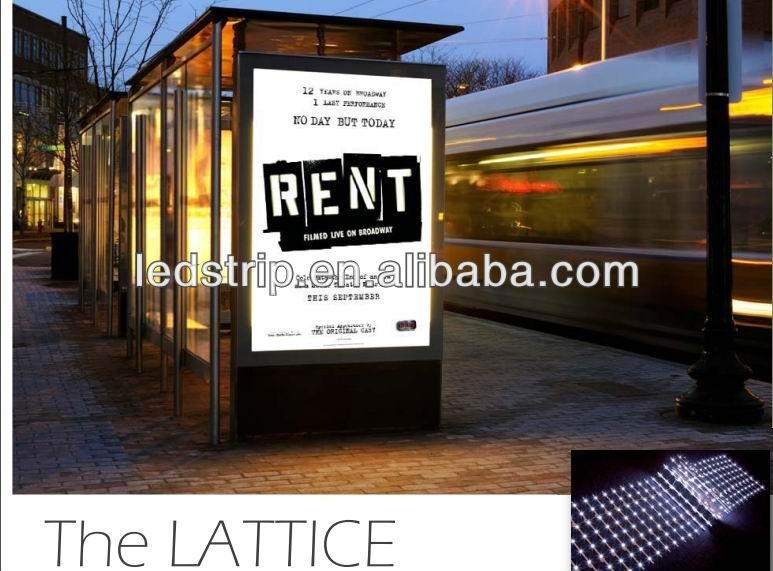

Applications
-Indoor and Outdoor Sign Cabinets
-Large Advertising Light Boxes
-Internally Lighted Billboards
-Large Signage Display Areas
-Single & Double Signboard
-Large Poster light boxes
付款方式︰ T/T,西联,Paypal
最小订量︰ 5 pcs
交货日期︰ 5 - 30 天
认可标准︰ CE,RoHS
