Description: RX-ALF3528 waterproof LED aluminum panel, With the top SMD3528 LED, unique waterproof design, the world's first, holds several patents, has a slim, low temperature rise, waterproof, safe, reliable, long life; strength over 40,000 hours aging test; Around the world, more than 5 years practical application, to good effect.
|
Waterproof IP67
|
>40000 hours test >4yeas(1700days) Life-Span >>50000hours |
|
A variety sizes Max 600x600mm Max custom sizes 1m2 |
Option LED Spacing 16,25,30,33,45,50mm
|
|
Ultra-thin 3mm
|
Luminous efficiency 100Lm/W DC12V LED chip >130Lm/W |
Optional sizes
|
Model |
Dimension |
LED QTY |
Lumen |
Power DC12V |
LED spacing Minimal Depth(No Hot Spot) |
|
RX-ALF3528-25-3030 |
300x300mm |
144LED |
1100Lm |
11W |
25mm Min. Depth* 40mm |
|
RX-ALF3528-25-20120 |
200x1200mm |
384LED |
2900Lm |
29W |
|
|
RX-ALF3528-25-6060 |
600x600mm |
576LED |
3900Lm |
39W |
|
|
RX-ALF3528-16-3030 |
300x300mm |
324LED |
2200Lm |
22W |
16.66mm Min. Depth* 25mm |
|
RX-ALF3528-16-2050 |
200x500mm |
360LED |
2400Lm |
24W |
|
|
RX-ALF3528-16-6060 |
600x600mm |
1296LED |
8200Lm |
82W |
|
|
RX-ALF3528-X66-3060 |
300x600mm |
81LED |
600Lm |
6W |
47.1mm Min. Depth* 36mm |
|
RX-ALF3528-X66-6060 |
600x600mm |
162LED |
1200Lm |
12W |

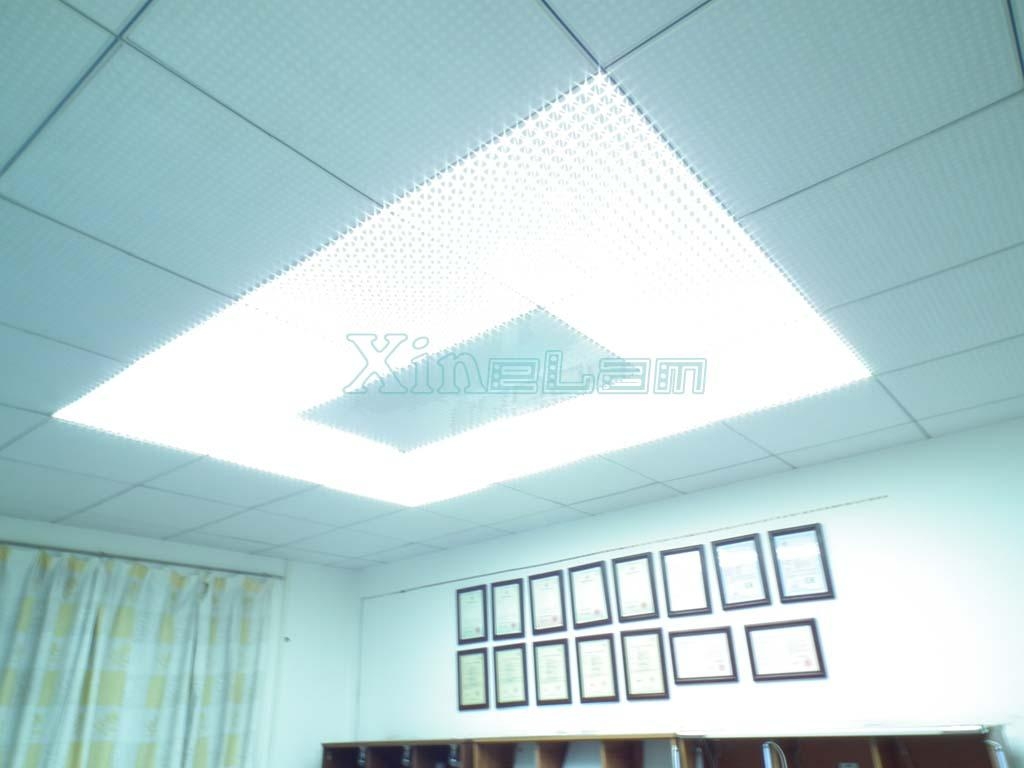

ledpanel light Applications
Mainly used for light boxes backlight, large-scale projects,shopping malls, railway stations, airports and other high-end places lighting, a variety of power, in various sizes, you can also customize the sizes, the professional energy-saving lighting projects.
产品规格︰
输入电压：12V
尺寸：60CMx60CM
LED数量：324pcs
厚度:≤ 3mm
灯板功耗：22W
产品优点︰
1 ，防水设计，耐变形或腐蚀，可以在潮湿的环境使用。
2 ，超薄尺寸，重量更轻
3 ，外观精致
4 ，超高亮度发光二极管
5 ，无害，安全，环保
6 ，寿命超过50000小时
防水电源可供选择！
适用于机场，地铁站，写字楼，商场和住宅装修。
主要市场︰ 欧洲
参考单价︰ 可协商
付款方式︰ TT西联 支付宝
最小订量︰ 10
交货日期︰ 付款后7-15天
认可标准︰ CE RoHs
