产品描述

MODEL:RX-ALF5050-33

Enhanced- Aluminum LED panel Lighting - more brightness

Recommended use

• Outdoor Advertising LED backlight instead of the fluorescent light box
• Indoor signs backlight, such as shopping malls, hotel restaurant advertising signs
• Direct replacement of the same size as the ceiling lighting

• Energy efficient, backlighting, energy saving 60% compared to fluorescent tubes
• Long-life, life over 50,000 hours
• excellent heat dispersing performance, the maximum temperature rise of <10 ℃
• DC power supply, more reliable, more secure
  Waterproof design, waterproof grade IP65
• Lead-free mercury-free, no harmful rays infrared, ultraviolet
  Light and thin, thickness 3.5mm

 Aging test is more powerful, 24-hours of continuous work, more than 800 days,More than two years of practical application, the customer was well

Main Material: LED, aluminum, epoxy resin, cable
Operating temperature: -20 ℃ ~ 55 ℃
Net Weight: 2KG (600x600mm)

Size can be customized according to your needs

China Patent No.: ZL200820131053, ZL200820132702

产品规格︰ Input voltage: 12V
Power: 58W
Luminous flux: 5200Lm
Illumination: 350Lx (spacing 2m)
Size: 600x600x3.5mm

产品优点︰ SMD5050 LED with the top LED panel lights
Patent number:ZL200820131053; ZL200820132702
LED panel lights waterproof: IP65
Ultra-thin LED panel lights: thickness 3.5mm
Temperature rise of the LED panel lights: the maximum temperature rise of 10°C
Dimmer amplifier with a large area simultaneously dimming


LED面板灯套件，综合光效更高：RX-ALF3528-KD20
AC市电输入，高光效90Lm/W，高功率因数0.95，兼容TRIAC调光，一致性非常高，可以大面积同步调光，24W相当于3x18W荧光灯管照度，节能65%，防水等级IP67，比普通导光型LED面板灯亮度高出3-5倍，光效高出最少30%

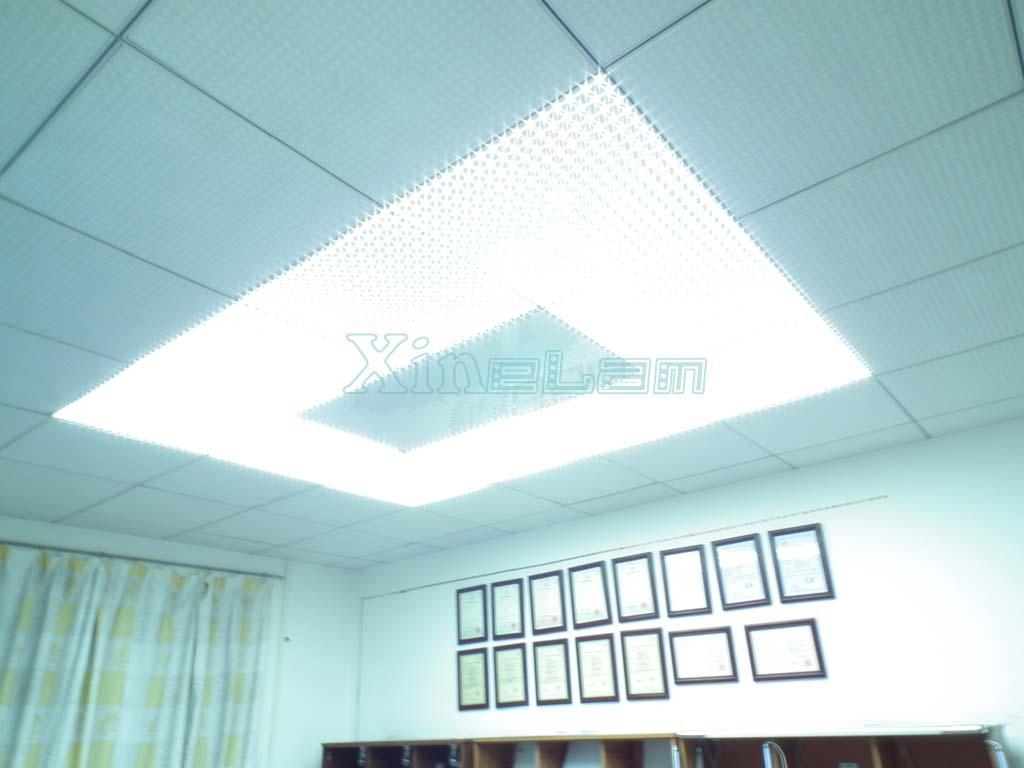

产品图片
