Model No.︰RX-ALF5050-33
Brand Name︰XineLam
Country of Origin︰China
Unit Price︰-
Minimum Order︰8 pc

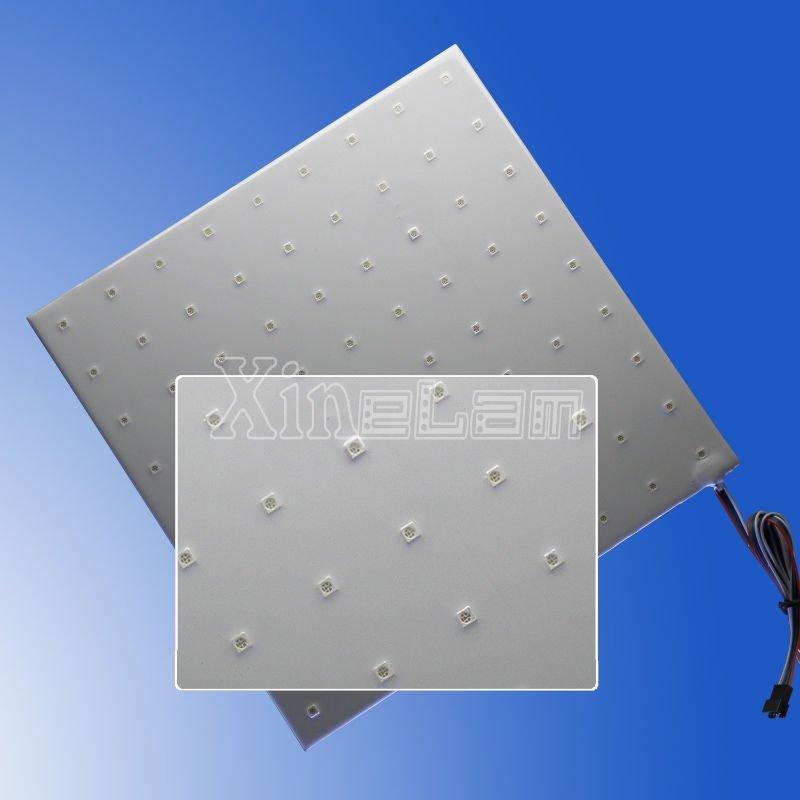

30x30,30x60,60x60cm dc12v led rgb modules advertising backlight purpose
>Top smd led chips,quality reliable

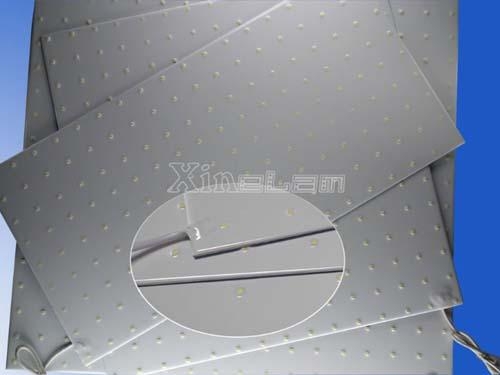

> dc12v operated,3.5mm slim only
>ip65 waterproof design
>Full aluminum board base for heat dissipation, low heat,low temp rise
>Sizes and shape can be customized,(standard sizes 30x30cm,30x60cm,60x60cm),different power versions can be choose from
> Light weight, and easy installation, no need often maintenance

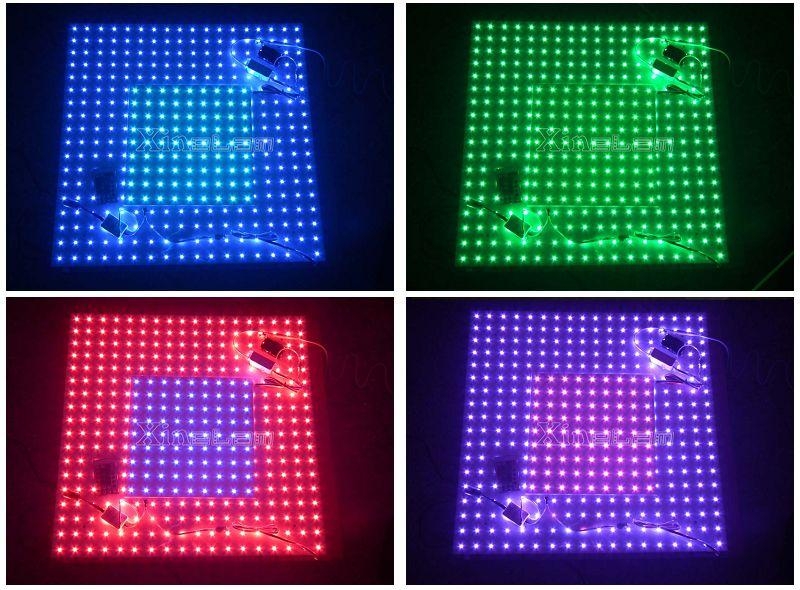

>WW(3000-3500K),NW(4200-4700K),CW(6000-6500K) RGB(5050) are available
> Multiple function: for exterior and interior signs,lightbox,billboard,poster backlight and indoor ceiling lamp.
| Model | Sizes(cm) | led spacing(mm) | Power(w) | Luminous (Lm) | Input volatage | Temp Rise(°c) | Depth forNo Hot Spot(mm) |
| RX-ALF5050-33 | 30x30 81leds | 33 | 15 | 1500 | dc12 | <10 | 50 |
| 30x60 162leds | 33 | 30 | 3000 | dc12 | |||
| 60x60 324leds | 33 | 58 | 5800 | dc12 | |||
| 10x30 27leds | 33 | 5 | 500 | dc12v | |||
| 40x50 180leds | 33 | 34 | 3400 | dc12v | |||
| 50x50 225leds | 33 | 40 | 4000 | dc12v | |||
| RX-ALF5050-25 | 30X30 144leds | 25 | 25 | 2500 | dc12 | <15 | 40 |
| 30X60 288leds | 25 | 50 | 5000 | dc12v | |||
| 60x60 576leds | 25 | 100 | 10000 | dc12v | |||
| 10x70 108leds | 25 | 19 | 1900 | dc12v | |||
| 45x55 396leds | 25 | 70 | 7000 | dc12v | |||
| 40x60 384leds | 25 | 69 | 6900 | dc12v | |||
| RX-ALF5050-16 | 10X60 216leds | 16.6 | 38 | 3800 | DC12V | <25 | 25 |
| 20X50 360leds | 16.6 | 65 | 6500 | DC12V | |||
| 30X30 324leds | 16.6 | 58 | 5800 | DC12V | |||
| 60x60 1296leds | 16.6 | 200 | 20000 | DC12V |
Export Markets︰ Europe America Japan
Pricing︰ Negotiable
Payment Details︰ TT WU PAYPAL
Min Order︰ 8PCS
Ship Date︰ 7-15days after payment
Standard Met︰ CE RoHs
