Product Description

led light curtain backlit sign cabinets

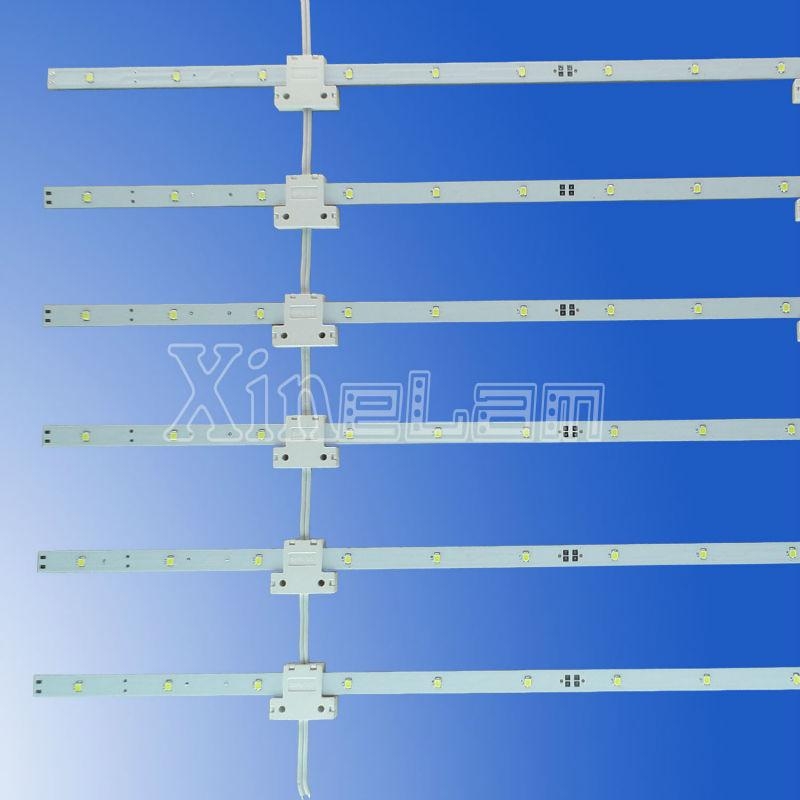

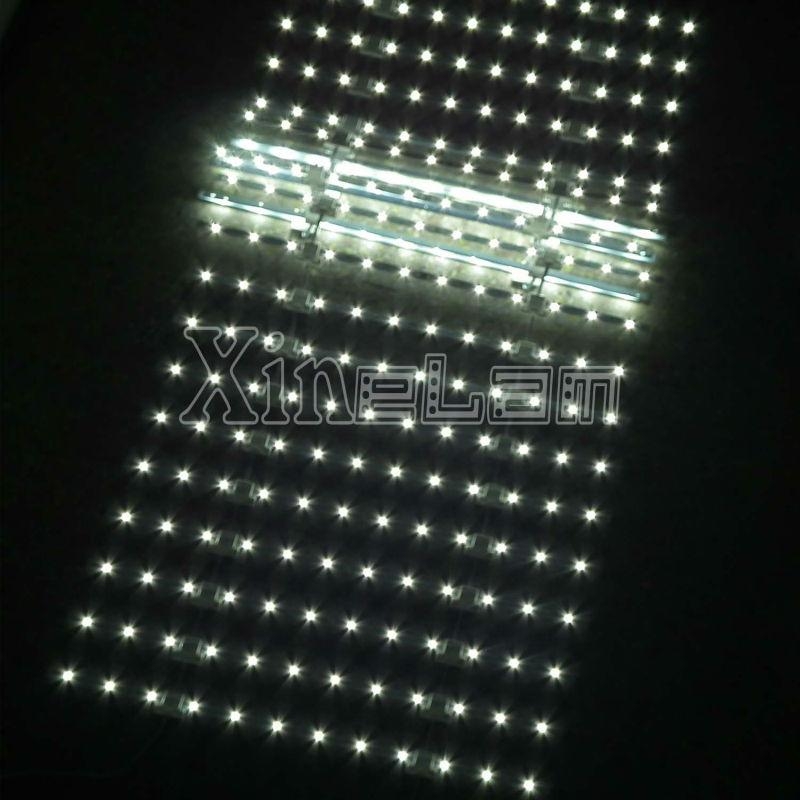

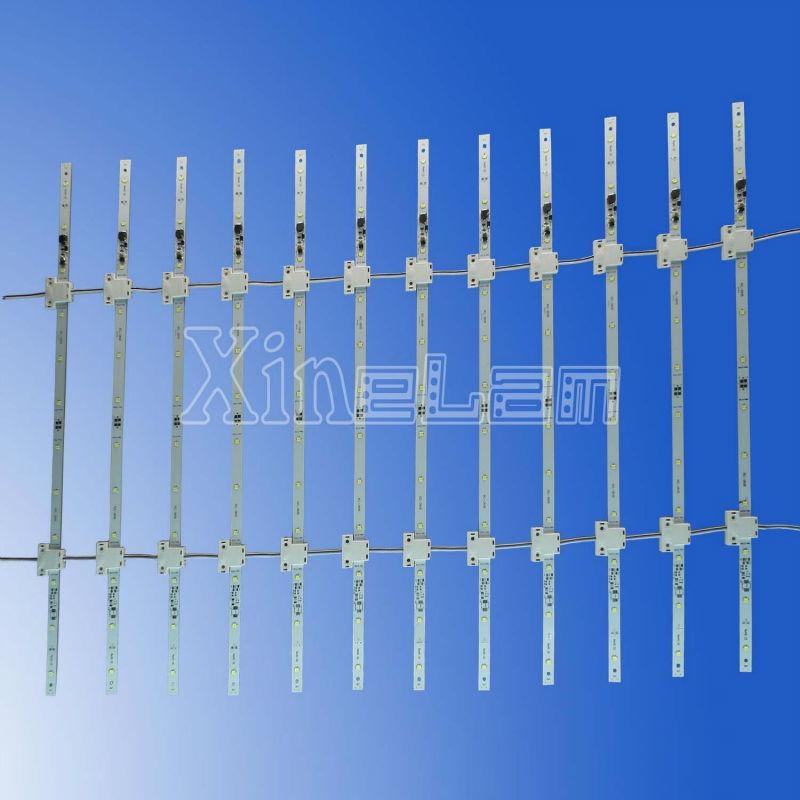

Description: BKT50S-50 LED lattice backlight (LED curtain, LED bamboo slips); LATTICE LED Matrix Lighting System is the most versatile and practical illumination solution for indoor and outdoor sign cabinets and large area illumination.

Innovative design of LATTICE system comes in lightweight easy-to-install rolls, which allows for easy population of perfectly spaced LEDs in minutes for uniform backlit lighting.

LED Chip	Epistar chip 2835 SMD
Input voltage	DC12V Constant Voltage
Each PCB dimension	600x10x2.8mm
PCB Color	White
High CRI	Ra > 85
High Efficiency	100Lm/w
High Brightness	9000Lm/m2, 836Lm/sqft
Waterproof Rating	Non-waterproof or Conformal Coated ip66
Option Color	WW 2700-3200K, NW 4200-4700K,CW 6000-6500K
Power	2.7W each PCS
LED QTY	12pcs each rigid bar
LED Lamp design	Single-side
LED to LED distance	50mm / 1.97”
Bar to Bar distance	50mm / 1.97”
LED to face distance	72mm / 2.83”
Maximum Series Connection	48bars 2.4M / 7.87ft
Cuttable LED	Each 3LEDs ( 150mm )
Available dimension	300x10x2.8mm & 150x10x2.8mm
Application Environment	Dry & Damp Locations
Operating Temperature	-30 ~ 70°C
Certifications	CE,RoHS,FCC



Applications

-Indoor and Outdoor Sign Cabinets

-Large Advertising Light Boxes

-Internally Lighted Billboards

-Large Signage Display Areas

-Single & Double Signboard

-Large Poster light boxes

Specifications︰ LED Light Source SMD2835 LEDs ( Epistar )
Type Flex LED Strips
Input Voltage(V) 12
Lamp Power 2.7W
Lamp Luminous Flux(lm) 270lm
CRI (Ra) 85
Color Temperature(CCT) 2700-3200K,4200-4700K,6000-6500K
Working Temperature(℃) -30 - 70
Working Lifetime(Hour) 50000
Lamp Body Material 2835LEDs,Rigid PCB,Lead cable
Certification CE, RoHS
Emitting Color Warm white, Neutral white,Cool white
LED To LED distance 50mm
Strip to Strip distance 50mm
LED QTY 12LEDs each bar
Common Width 600mm
Maximum series 48pcs strip / roll
Other Width 300mm and 150mm
Each strip size 600x10x2.8mm
Cuttable each 3LEDs
Waterproof Rating Non-Waterproof (Option Conformal Costed,IP66)
Warranty 3 Years

Advantages︰ led light curtain backlit

100Lm/w,high cri 85,smd2835

Perfectly spaced Led

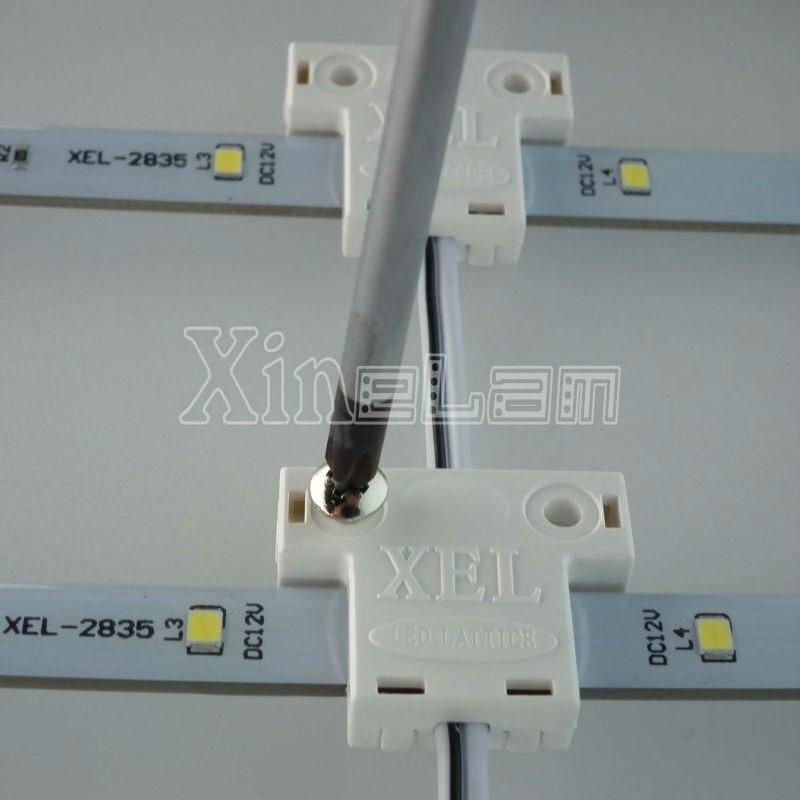

Easy-to-install,12v/24v

Affordable,3year warranty

Payment Details︰ T/T,Western Union,Paypal

Min Order︰ 5pcs

Ship Date︰ Sample 5 days, Order 7 - 30 days

Standard Met︰ CE,RoHS

Product Image
