Product Description

Member Information: ———————————————————————————————————————————————————— Company Name：             zhongshan Koray Opto-Electronic Light Co., Ltd———————————————————————————————————————————————————— Country/Region:                Guang Dong - China ———————————————————————————————————————————————————— Business Nature:                Manufacturer ———————————————————————————————————————————————————— Contact:                              Jenny Zhong Sale Manager ———————————————————————————————————————————————————— Phone:                                18925396951 ———————————————————————————————————————————————————— Email:                                  export@Koraylight.com

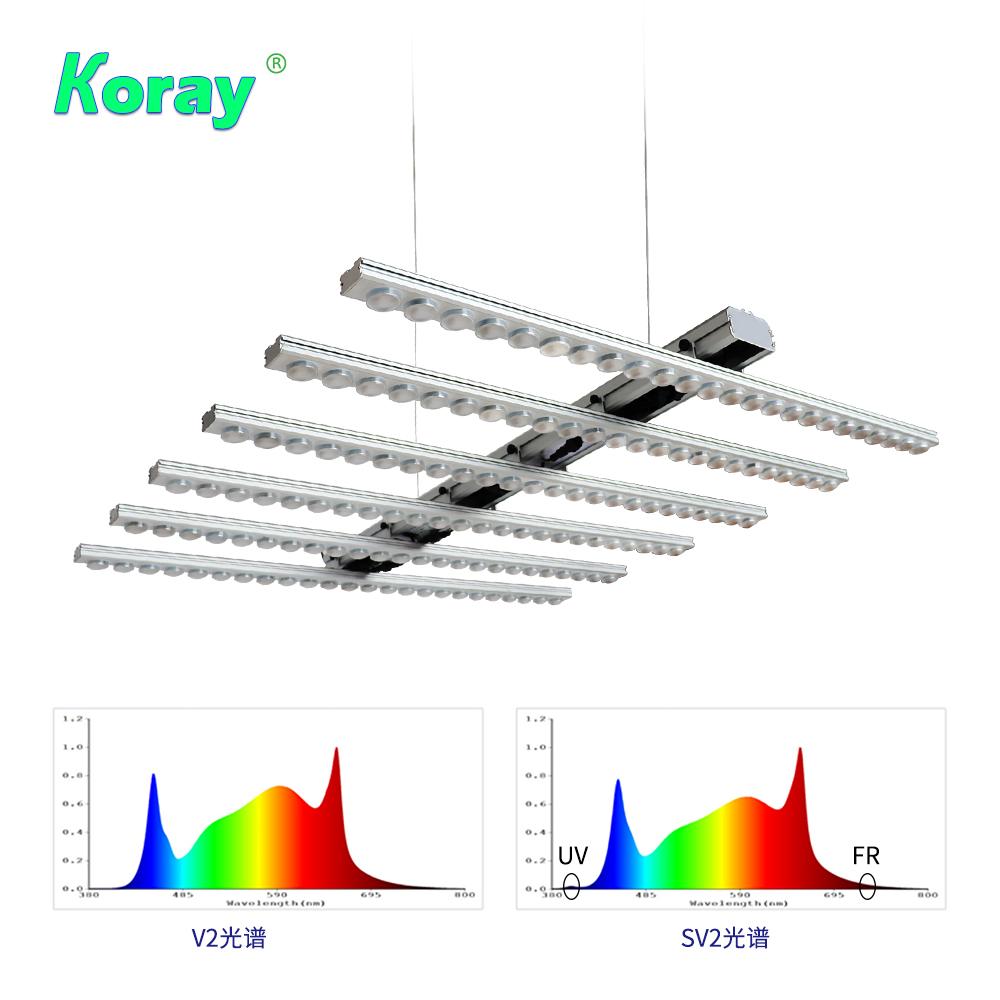

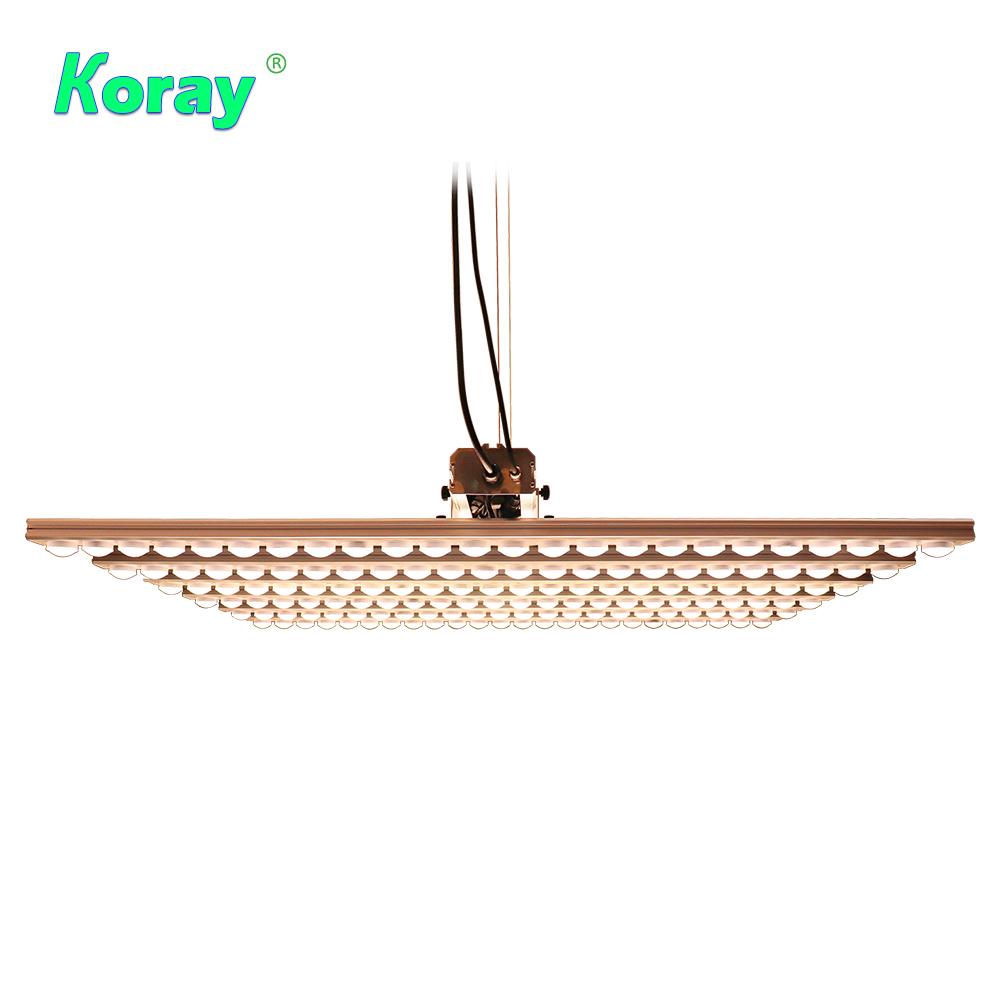

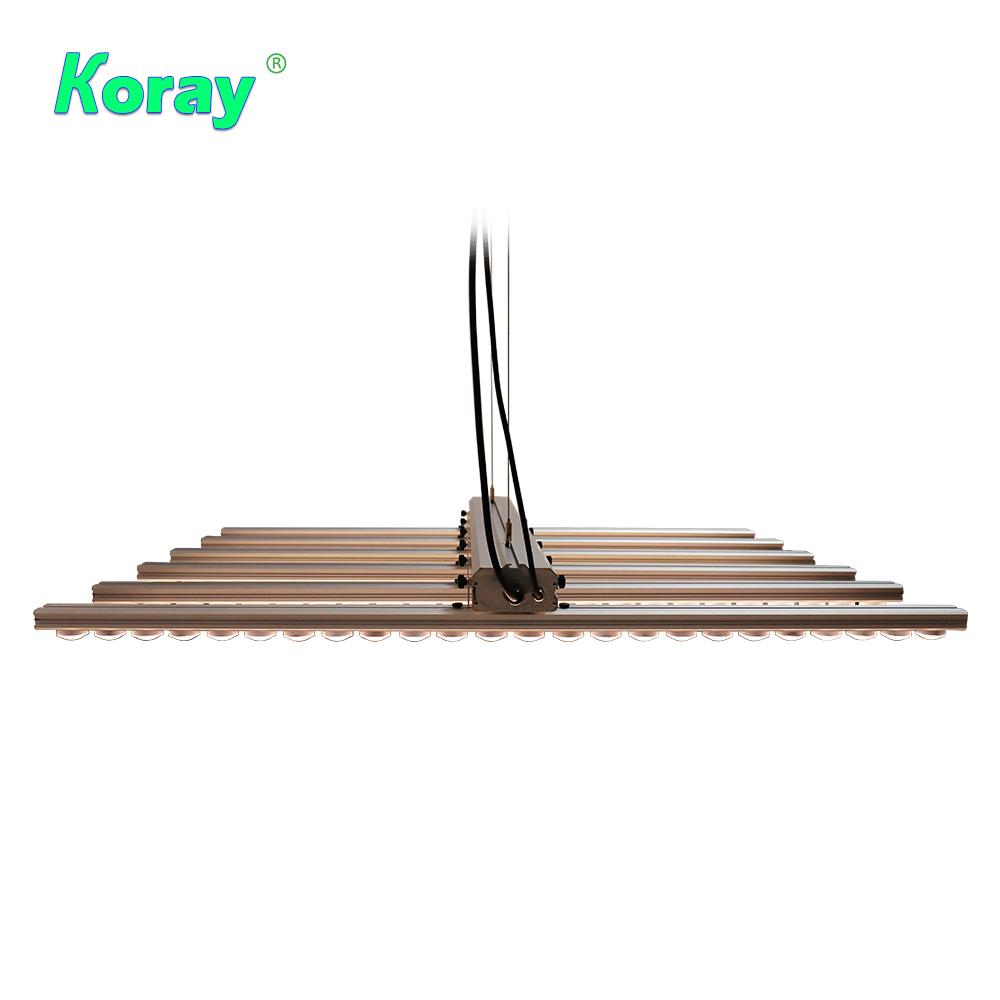

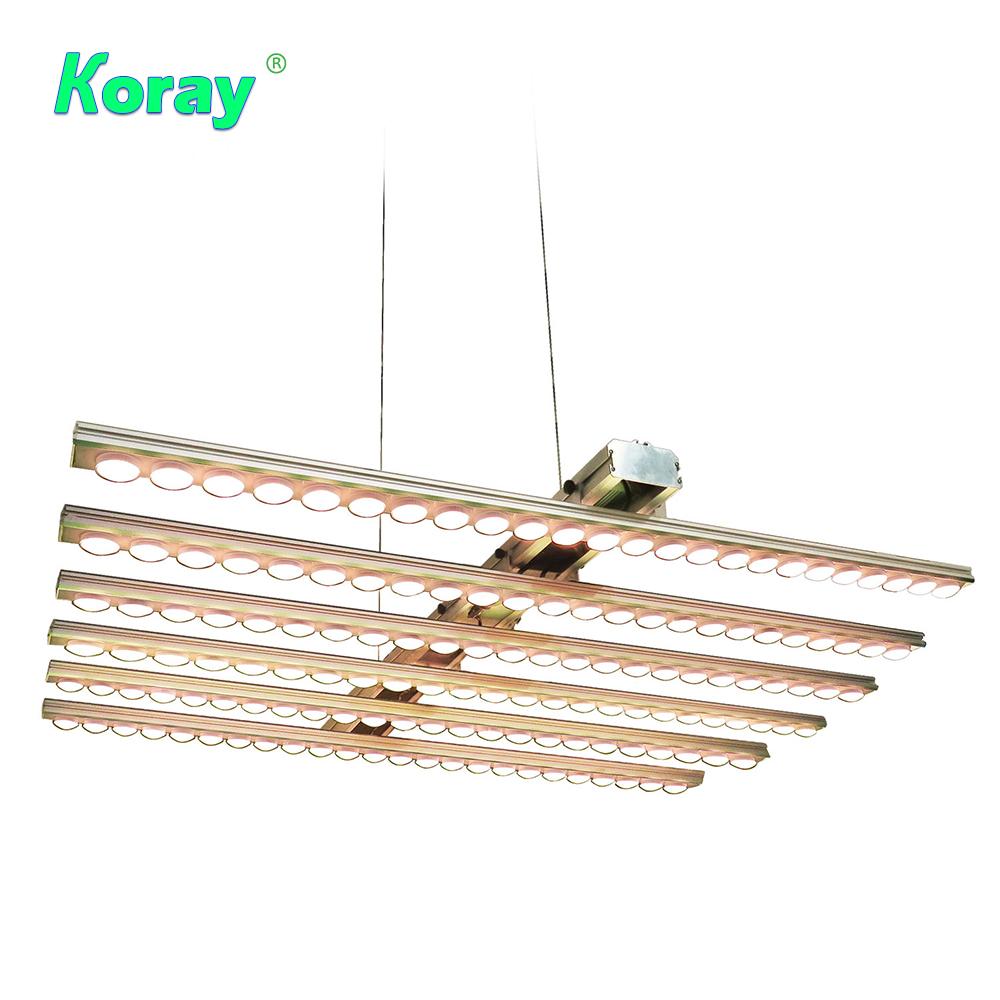

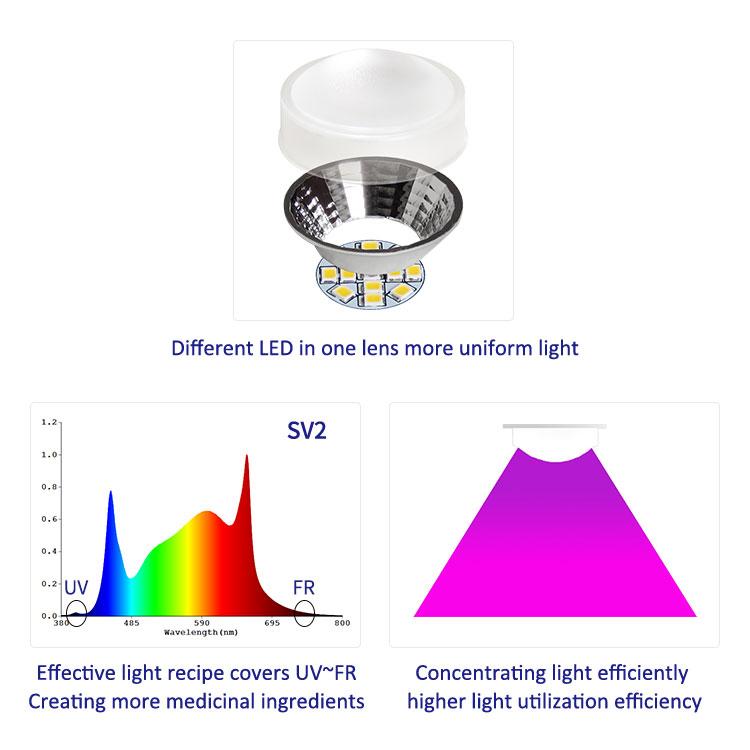

Description:  RX-TP5025T-120Z medical plant growth module array lamp, Koray LED Grow Lights, New patent design product with unique lens, Different LED chips in one lens, Concentrating Light efficiently and More uniform spectral radiation, directional light ,higher light utilization efficiency, more efficient comparing with common grow lights. Specially designed for medicinal planting, high PAR output, optimal plant-specific spectrum, from UV to Far red, to meet the light requirements of medicinal plants, fully stimulate medicinal ingredients. It is especially used for indoor planting of medicinal plants, planting planting tents, and scientifically experimenting planting.

Model	Dimension LxWxH	Spectral Wavelength	Photon PPFD µmol/m²/s	Luminous flux PAR Output	Power Input AC230V	Comment
RX-TP5025T-D90	120x120x11cm	V2	682µmol @0.15m	Flux 76600Lm PPF: 1146umol/s PAR: 240000mW	480W	Light emission angle: 90° Recommended irradiation distance 15cm Ra88 2.4umol/J
			603µmol @0.2m
			541µmol @0.3m
RX-TP5025T-D60		SV2	878µmol @0.15m *	Flux 63500Lm PPF: 1000umol/s PAR: 210000mW	480W	Light emission angle: 60° Recommended irradiation distance 20cm Add small UV spectrum
			659µmol @0.2m
			541µmol @0.3m

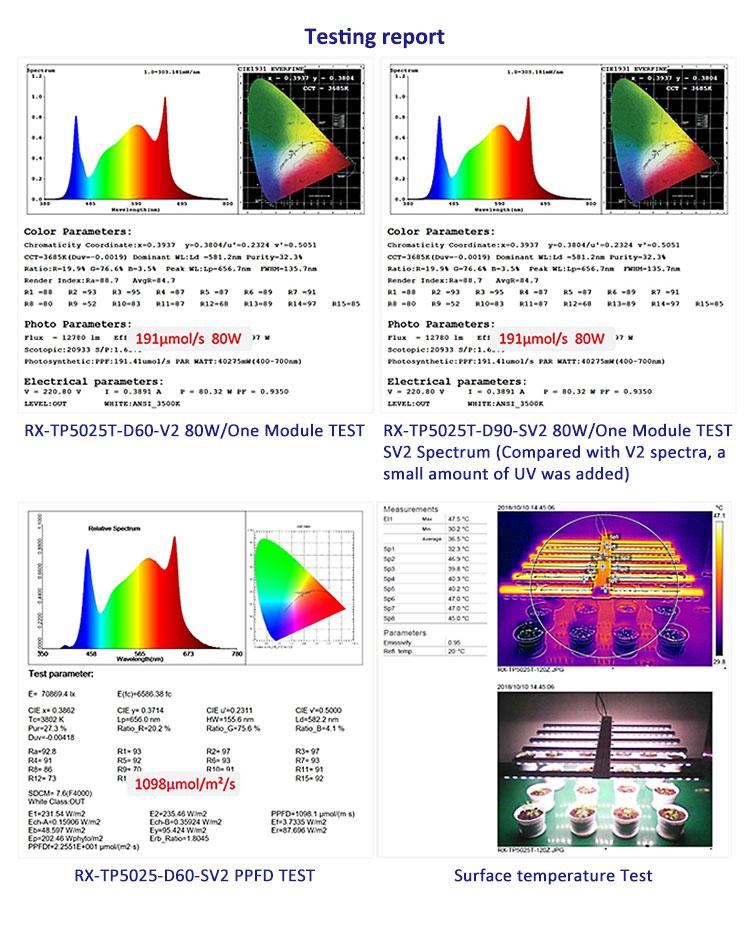

Surface temperature rise Tc 18°K ,  Operating temperature: -30°C ~ 40°C , Lifespan: 50,000 hours (Note: Ta ≤25°C) Tolerance range for optical and electrical data: ±10 %. Recommended irradiation distance 0.15 ~ 0.3m; PPFD test: Irradiation area 1.2x1.2m, divided into 36 areas, the average value of the test data . * D60 H 0.15m Uniformity is not good!

（Total PAR output: It is calculated by a single LED module）The above data is for reference only!



Specifications︰ Member Information
Company Name zhongshan Koray Opto-Electronic Lighting Co., Ltd.

Country/Region: Guang Dong - China
Business Nature: Manufacturer
Contact: Jenny Zhong Sale Manager
Phone: 18925396951
Last Online: 20 Dec, 2018

Advantages︰ 1. Basement, grow tent planting medicinal plants
2. Large size 1.2x1.2m (4'x4'), multiple Bar arrays, uniform spectral radiation
3. High PAR output, PPFD>650µmol/m²/s, 1.2x1.2m Average value
4. Dedicated to medicinal and medical plant growth

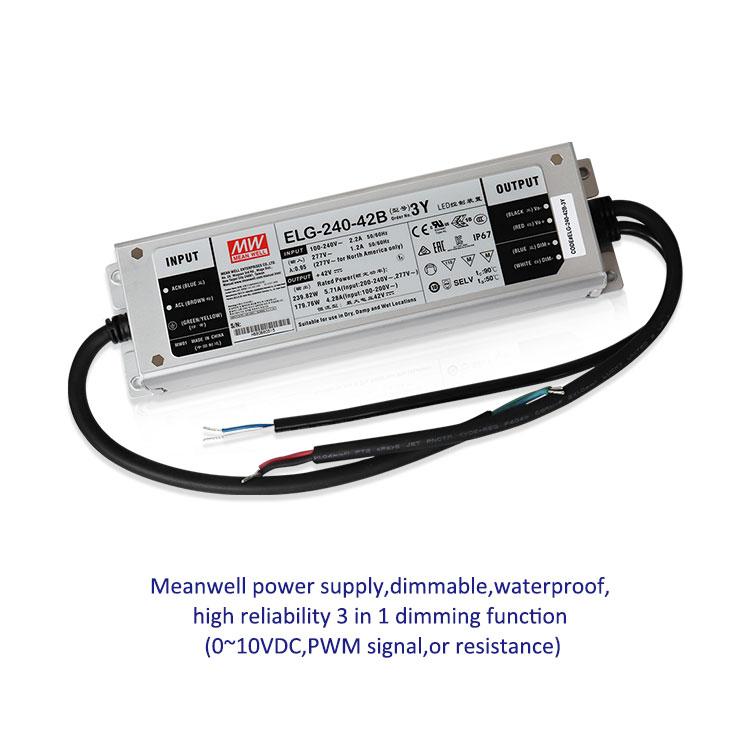

5. Dimming Meanwell LED Power, long life more reliable

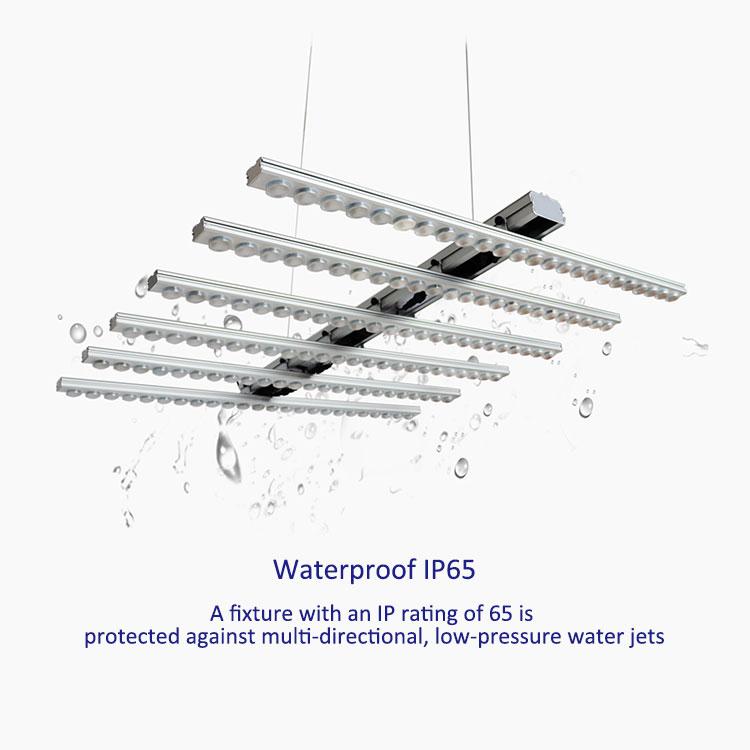

6. Waterproof IP65, Can be used in humid environments
7. Input: AC100~305V, PF >0.9 Powr:480W
8. Long life up to 50,000 hours
9. CE RoHS FCC

Export Markets︰ Europe America

Pricing︰ Negotiable

Payment Details︰ TT WU PAYPAL

Min Order︰ 100pcs

Ship Date︰ Negotiable

Standard Met︰ ETL CE RoHS FCC

Product Image
