Product Description
MODEL:RX-ALF5050-33
Enhanced-LED Aluminum panel Lighting - more brightness
Recommended use
- Outdoor Advertising LED backlight instead of the fluorescent light box
- Indoor signs backlight, such as shopping malls, hotel restaurant advertising signs
- Direct replacement of the same size as the ceiling lighting
- Energy efficient, backlighting, energy saving 60% compared to fluorescent tubes
- Long-life, life over 50,000 hours
- excellent heat dispersing performance, the maximum temperature rise of <10 ℃
- DC power supply, more reliable, more secure
Waterproof design, waterproof grade IP65
- Lead-free mercury-free, no harmful rays infrared, ultraviolet
Light and thin, thickness 3.5mm
Aging test is more powerful, 24-hours of continuous work, more than 700 days,More than two years of practical application, the customer was well
Main Material: LED, aluminum, epoxy resin, cable
Operating temperature: -20 ℃ ~ 55 ℃
Net Weight: 2KG (600x600cm)
Size can be customized according to your needs
China Patent No.: ZL200820131053, ZL200820132702
RX-ALF5050-33 data sheet:
|
|
MODEL
|
Dimension mm
|
LED QTY
|
Illuminance Lux
|
Luminous flux Lumen
|
Power
|
Input
|
|
Spacing6cm
|
Spacing1m
|
Spacing2m
|
|
RX-ALF5050-33
LED spacing 33mm
|
300x300x3.5
|
81pcs
|
9000
|
380
|
100
|
1350
|
15
|
12V
|
|
300x600x3.5
|
162pcs
|
9000
|
700
|
205
|
2650
|
30
|
12V
|
|
600x600x3.5
|
324pcs
|
8600
|
1000
|
350
|
5200
|
58
|
12V
|
|
Note: The above parameters for white light LED, backlighting for advertising space and advertising canvas 5cm, light effects can be achieved even
Available colors: white 6000-7000K, warm white 3000-3500K
|

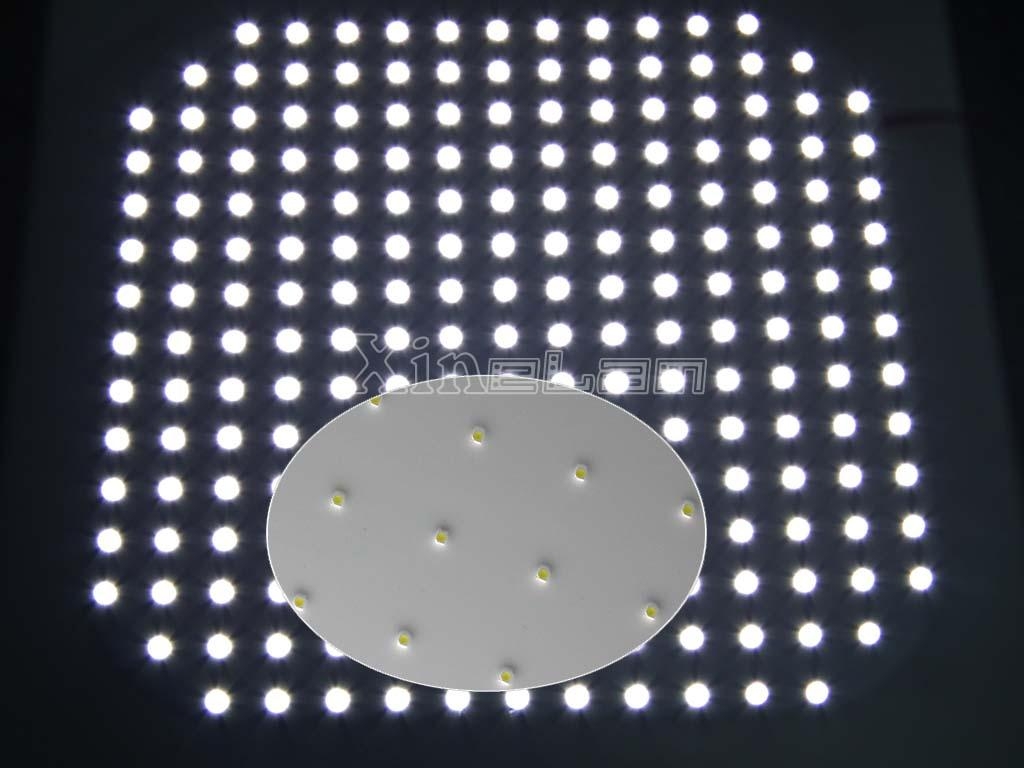

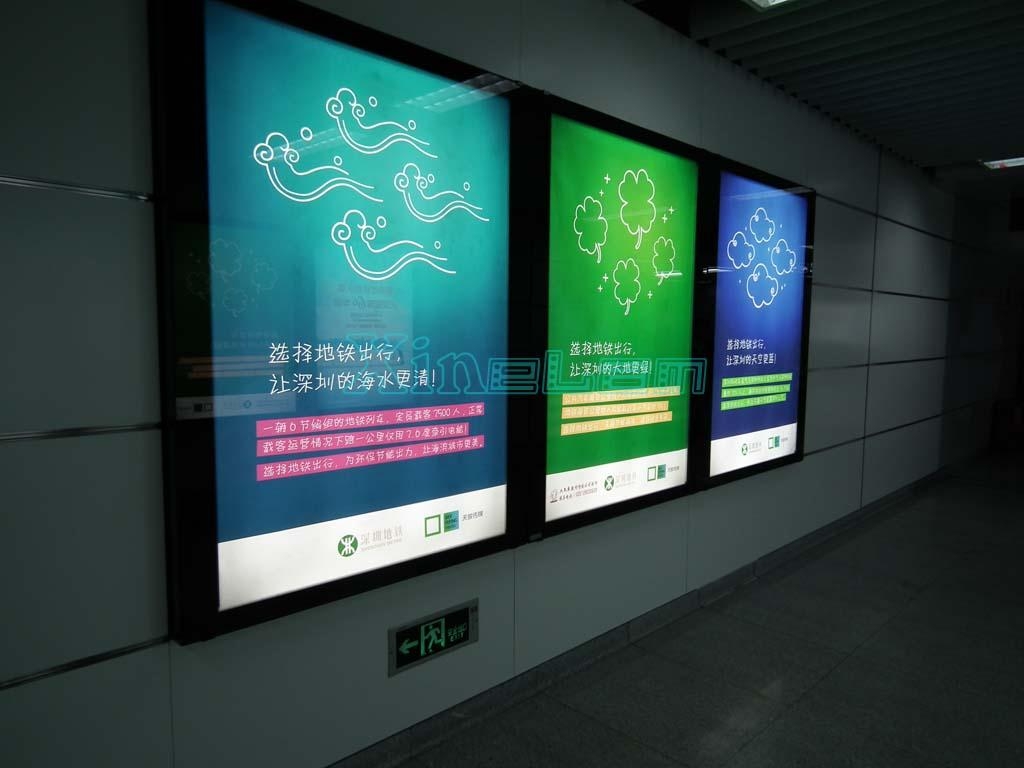

Product Image
