Light Source |
LED |
Item Type |
Light Strips |
LED Light Source |
SMD2835 LEDs ( Epistar ) |
Type |
LED Bar Lights |
Input Voltage(V) |
24V |
Lamp Power |
6.6W |
Lamp Luminous Flux(lm) |
566Lm |
CRI (Ra>) |
85 |
Color Temperature(CCT) |
2700-3200K,4200-4700K,6000-6500K |
Working Temperature(℃) |
-30 - 50 |
Working Lifetime(Hour) |
40000 |
Lamp Body Material |
Aluminum |
Certification |
CE, FCC, RoHS |
Emitting Color |
Warm white, Neutral white,Cool white |
Place of Origin |
Guangdong, China (Mainland) |
Brand Name |
XineLam connectable Led bar lighting |
Model Number |
RX-ALA28-L16-50 connectable Led bar lighting |
Materials |
Aluminum Housing,PC lampshade,LED,Power cord,Clip |
Optional length |
10cm 20cm 50cm 100cm 120cm |
LED QTY |
72pcs 60pcs 30pcs 12pcs 6pcs |
LED spacing |
16.66mm,60LED / m 3LED a group |
Interconnect connection |
10m / 24V ( 5m/12V) |
Each LED Brightness |
19Lm/LED |
Each LED Power |
0.22W / LED |
Waterproof Rating |
IP53 |
Light efficiency |
85Lm/w,50% higher than similar products |
Applications |
Showroom,Cabinet,Under shelf lighting,Accent,Cove lighting |

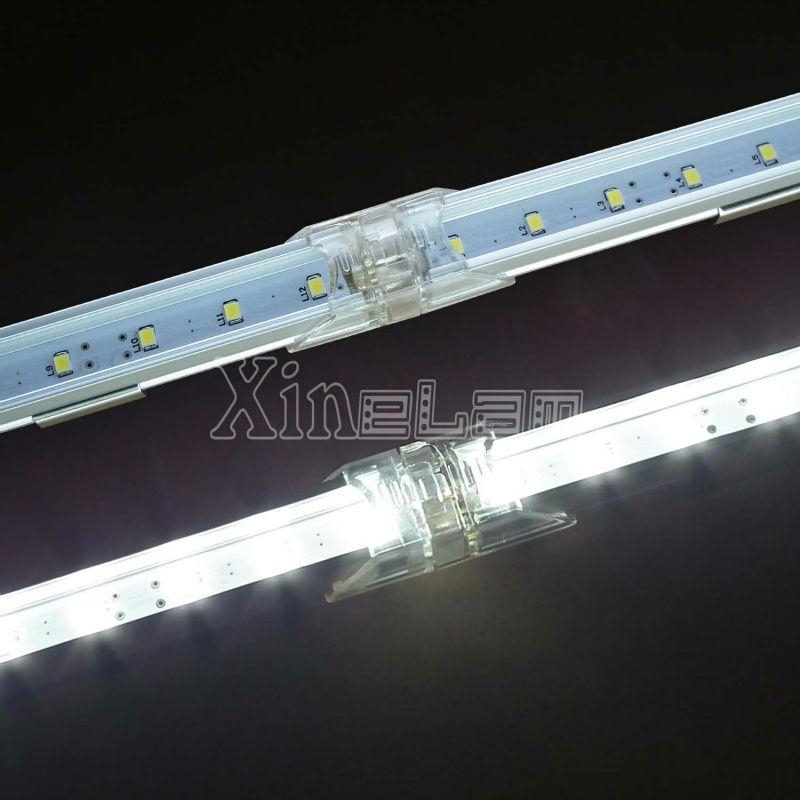

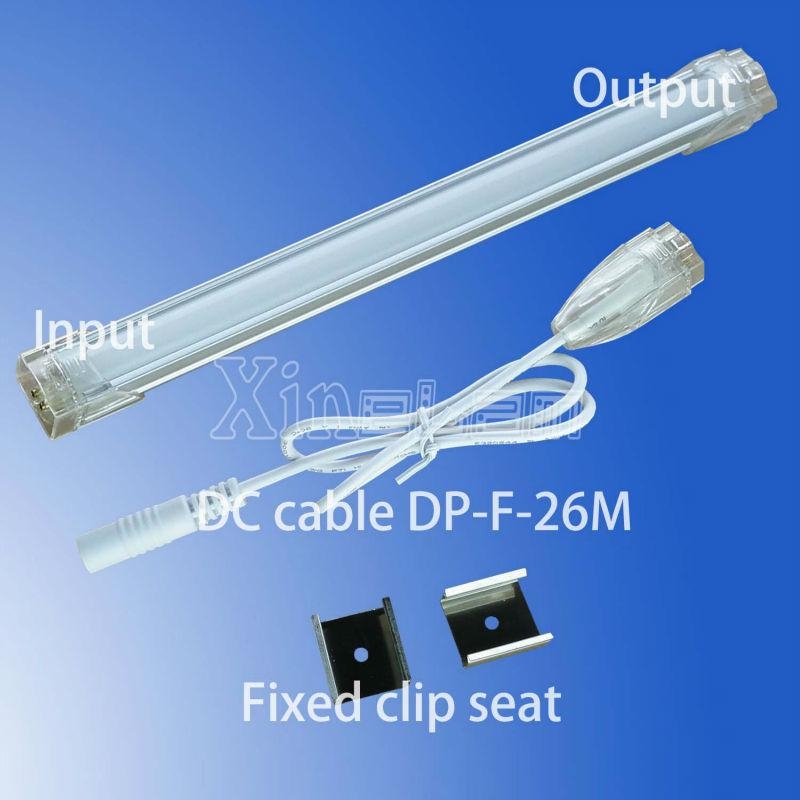

Easy connectable Led bar lighting
-Extendable LED Light Strips
Interconnect up to 10m
Available in 10cm,20cm,50cm,100cm and 120cm
With a new design, high cost performance
Light efficiency compared to similar products increased by50%.
Technical details
LED Chip
|
Epistar 2835 SMD LED
|
High CRI
|
Ra> 85
|
High Efficiency
|
85Lm/W
|
Each Led Brightness
|
19Lm/LED
|
Each Led Power
|
0.22W/LED
|
Input Voltage
|
DC24V (Optional 12V)
|
Optional Length
|
10cm. 20cm. 50cm. 100cm. 120cm
|
LED Spacing
|
16.66mm, 60LED/m, 3LED a group
|
Extendable LED bars
|
Interconnect up to10m / 24V
|
Default Colors
|
CW 6000~6500K
|
Other colors
|
WW 2700~3200K NW 4200~4700K
|
Waterproof Rating
|
IP53
|
Long Life-Span
|
>40000hours
|
Operating Temperature
|
-30~50 25 ° C
|
Certifications
|
CE RoHS FCC
|
Quality Warranty
|
3 years
|
Applications:
• Under Cabinet
• Stairway Accent
• Signage
• Bookshelf
• Path
• Cupboard
• Showcase
• Cove Lighting
• Jewelry Case
-Direct Lighting, Replacement of fluorescent tubes
-Advertising decorative Lighting
-POP display lighting
-Show Window Display Lighting
-Shelf lighting
-Store showcase lighting
-Back Lighting
-Aquarium fish tank lighting
|
