RX-CK Waterproof LED module, using the new PCB design, top SMD 5050 LED, is the world's most efficient LED modules 100Lm / W, ultra-thin, low temperature rise, waterproof, long life Characteristics.
Luminous efficiency: 100Lm/W
Input Voltage: DC12V
Long life: ≥50000hours
High brightness: 24Lm / LED
Power: 0.24W / LED
New design: One LED group
Waterproof: IP67
Ultra-thin: 3mm
Warranty: 3 years
Model
Dimension
LED QTY
Lumen
Power
DC input
Max Series connection
Brightness Per Meter
Comment
RX-CK-L3
62x16.8x3mm
3LED
72Lm
0.72W 12v
90pcs 20M
288Lm / m
Cable 200mm
Limiting resistor
RX-CK-L3-RGB
62x16.8x3mm
3LED
15Lm
0.72W 12V
90pcs 20M
60Lm / m
Cable 200mm
RGB color
Limiting resistor
RX-CK-L4
68x15x3mm
4LED
96Lm
096W 12V
90pcs 16M
368Lm / m
Cable 200mm
Limiting resistor

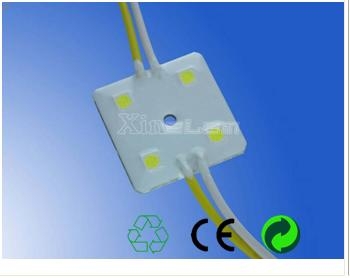

RX-CK-F4
35x35x3mm
4LED
96Lm
0.96W 12V
62pcs 14M
432Lm/m
Cable 200mm
The above table data testing at room temperature is 25 °C, test voltage DC12V, Temperature rise+15oC
LED color temperature 6000-6500K, CRI > 75 , Life 50000hours@25 °C
Applications
Backlit for:
-3d signs
-Advertising plastic characters
-Blister words
-signage display
-Logo Sign
-Channel letters
-Advertising light boxes
-Billboard,Poster
-Do your own energy-saving lighting projects.
Specifications︰
Model Number RX-CK-L3 led moduli light
Chip Material InGaN
Emitting Color Warm White,Neutral White,Cool White,Red,Green,Blue,Yellow,RGB
Luminous Flux(lm) 72Lm
Power 0.72W
Viewing Angle(°) 120
Color Rendering Index(Ra) 75
Color Temperature 2700-3200K,4200-4700K,6000-6500K
Operating Temperature(℃) -30 - 50
Storage Temperature(℃) -30 - 80
Certification CE, RoHS
waterproof IP67
Input 12v
Life-time 50, 000 hours
Dimension 62x16.8x3mm
LED Chip 3pcs smd5050 LEDs
Warranty 3 Years
Applications Backlit for signs,letter,logo,light boxes
