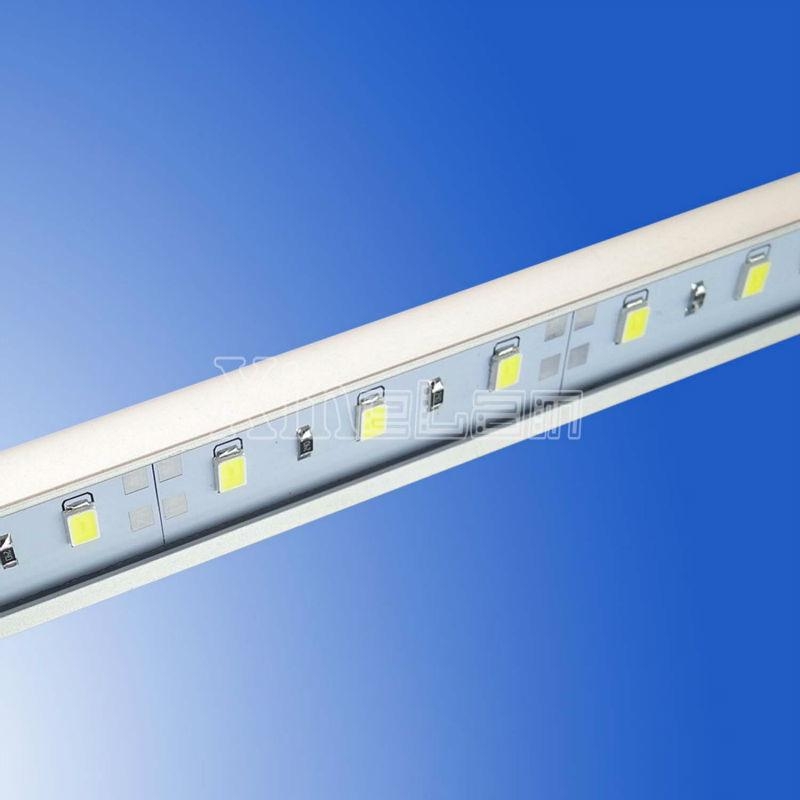

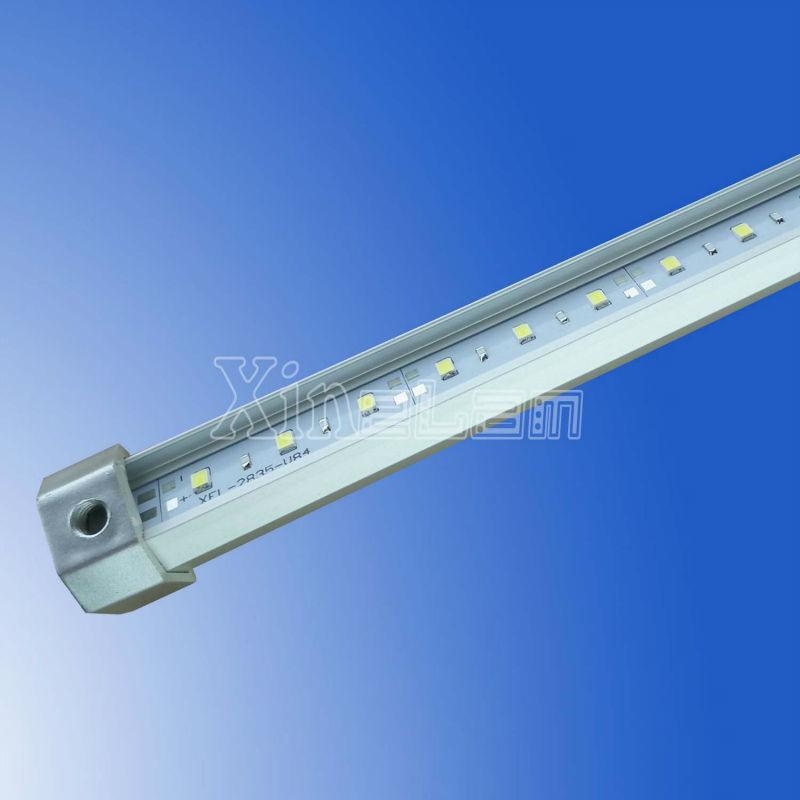

Description: ALA28 Series Non-waterproof LED Bar, with a new design, high cost performance. Light efficiency compared to similar products increased by 30%., mainly used in the showroom, showcase shopping malls, bars Showcase Jewelry Showcase, gold showcase, cabinet and wardrobe. Can also be used: home lighting, advertising signs, your own ideas!
|
High CRI > 85
|
Luminous efficiency
100Lm/W DC12V
|
|
Optional Length
500 / 1000 / 1200mm
|
Brightness
22Lm / LED
|
|
Warranty
3 years
|
LED spacing
72LED / m
3LED a group
|
|
Application specs
|
|
Brightness
|
1800Lm / 1200mm
|
|
Default Colors
|
CW6000~6500K
|
|
Other colors
|
WW2700~3200K NW4200~4700K
|
|
Waterproof Rating
|
Non waterproof
|
|
Operating Temperature
|
-22oF~122oF (-30~50oC)
|
|
Electrical specs
|
|
|
Power
|
18W / 1200mm
|
|
Input
|
DC 12V or DC24V
|
|
Series connection TYPE B
|
Max 5A
|
|
Certification
|
CE RoHS FCC
|
|
Life-Span
|
>40000hours
|
|
MODEL
|
PCB
Length
|
AL housing
Length
|
Luminous flux
|
Power
|
Series connection length
|
Comment
|
|
12V
|
24V
|
|
ALA28-06V-120
|
1176mm
|
1196mm
|
1800Lm
|
18W
|
3pcs / 3.6m
|
6pcs / 7.2m
|
LED counter lamp
|
|
ALA28-06V-100
|
1000mm
|
1016mm
|
1580Lm
|
15.8W
|
4pcs / 4m
|
8pcs / 8m
|
|
ALA28-06V-50
|
500mm
|
516mm
|
800Lm
|
8W
|
8pcs / 4m
|
16pcs / 8m
|
|
ALA28-32V-120
|
1176mm
|
1196mm
|
1530Lm
|
18W
|
3pcs / 3.6m
|
6pcs / 7.2m
|
White diffusion or Water clear Lampshade
|
|
ALA28-32V-60
|
582mm
|
600mm
|
780Lm
|
9.2W
|
6pcs / 3.6m
|
8pcs / 8m
|
|
Note: The above table data test room temperature is 25 ° C, the test voltage of 12V; LED color is white (6000-6500K);
*Tolerance range for optical and electrical data: ±10 %. Life 40000hours@25 oC
|

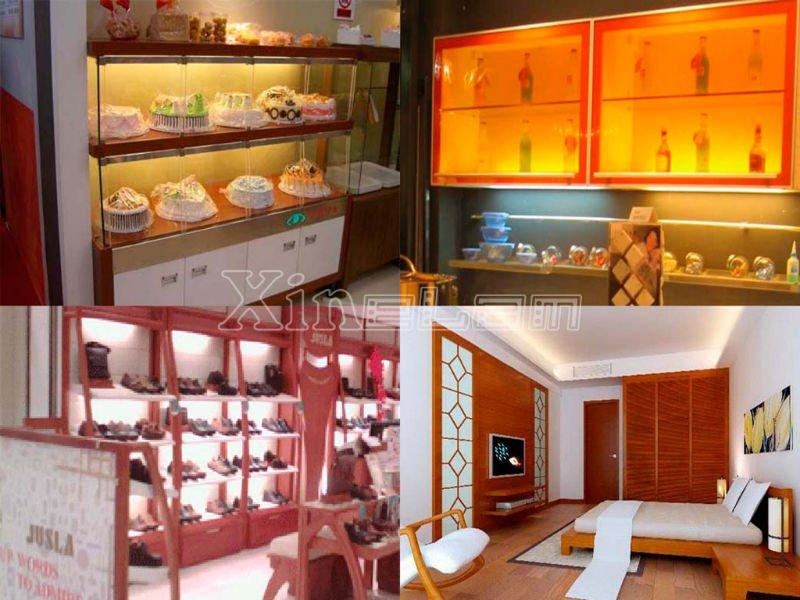

Applications:
• Under Cabinet
• Stairway Accent
• Signage
• Bookshelf
• Path
• Cupboard
• Showcase
• Cove Lighting
• Jewelry Case
-Direct Lighting, Replacement of fluorescent tubes
-Advertising decorative Lighting
-POP display lighting
-Show Window Display Lighting
-Shelf lighting
-Store showcase lighting
-Back Lighting
-Your own ideas
