Advertising signs ultra thin led backlight panel

Model No.︰

RX-ALF3528-33

Brand Name︰

XineLam

Country of Origin︰

China

Unit Price︰

Minimum Order︰

10 pc

Total 30 Related Items

Product Description

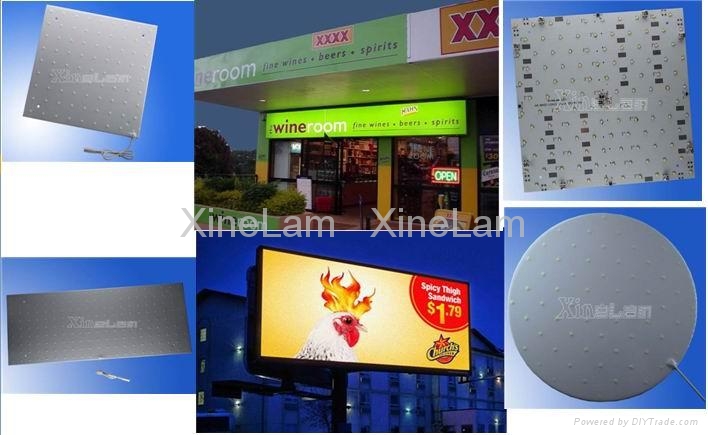

Advertising signs ultra thin led backlight panel

-special design dedicate to signs and lightbox backlight
-3.5mm slim,ip65waterproof
-sizes and shape customized
-full aluminum base for heat dissipation,low heat,low temp rise
-With 3years warranty

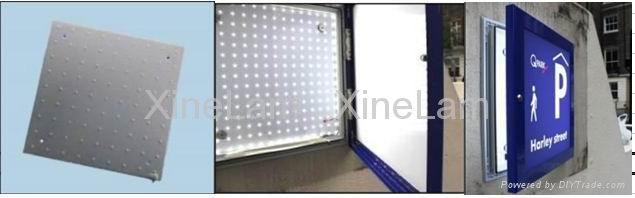

-Can be used for exterior and interior signs and lightbox backlight ,as well as indoor ceiling lamp
-dc12v operated,smd3528 5050 led chips can be choose from
-Differen power cost versions and colors for selection

Model	Size(cm)	led Spacing	Power	Luminous	Input	Temp rise	Depth for NO HOT Spot
RX-ALF3528-X66	20x20 18leds	47mm	1.4w	140	dc12v	<3°c	70mm
	20x30 27leds	47mm	2.8w	280	dc12v	<3°c
	30x30 40leds	47mm	4.3w	430	dc12v	<3°c
	20x60 54leds	47mm	4.3w	430	dc12v	<3
	30x60 81leds	47mm	6w	600	dc12v	<3
	60x60 162leds	47mm	12w	1200	dc12v	<3
RX-ALF3528-45	27X27 36leds	45mm	2.8W	280	dc12v	<3	65mm
	27x54 72leds	45mm	5.6w	560	dc12v	<3
	54x54 144leds	45mm	11w	1100	dc12v	<3
RX-ALF3528-33	30X30 81leds	33.3mm	5.5w	550	dc12v	<5	50mm
	30x60 162leds	33.3mm	11w	1100	dc12v	<5
	50x50 225leds	33.33mm	15w	1500	dc12v	<5
	60x60 324leds	33.3mm	22w	2200	dc12v	<5
RX-ALF3528-30	27X27 81leds	30.5mm	5.5w	550	dc12v	<5	45mm
	27x54 162leds	30.5mm	11w	1100	dc12v	<5
	54x54 324leds	30.5mm	22w	2200	dc12v	<5
RX-ALF3528-25	30X30 144leds	25mm	11w	1100	dc12v	<5
	30x60 288leds	25mm	20w	2000	dc12v	<5
	60x60 576leds	25mm	39w	3900	dc12v	<5
RX-ALF3528-16	30X30 324leds	16.6mm	22w	2200	dc12v	<10	35mm
	30x60 648leds	16.6mm	42w	4200	dc12v	<10
	60x60 1296leds	16.6mm	82w	8200	dc12v	<10
RX-ALF3528-50	30X30 36leds	50.8mm	2.8w	280	dc12v	<5	70mm
	30x60 72leds	50.8mm	5.5w	550	dc12v	<5
	60x60 144leds	50.8mm	11w	1100	dc12v	<5
RX-ALF3528-R23 Round led panel	Diameter 300mm 121leds	8.5w	850	dc12v	<3	40mm
RX-ALF3528-R33 Round led panel	Diameter 300mm 61leds	4.2w	420	dc12v	<5	40mm
